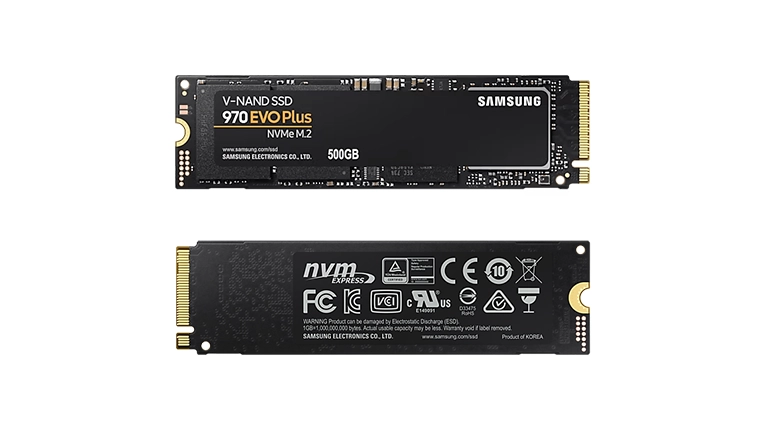

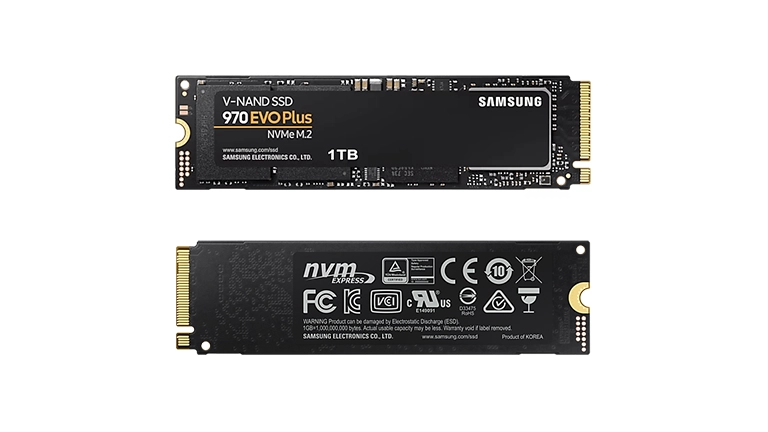

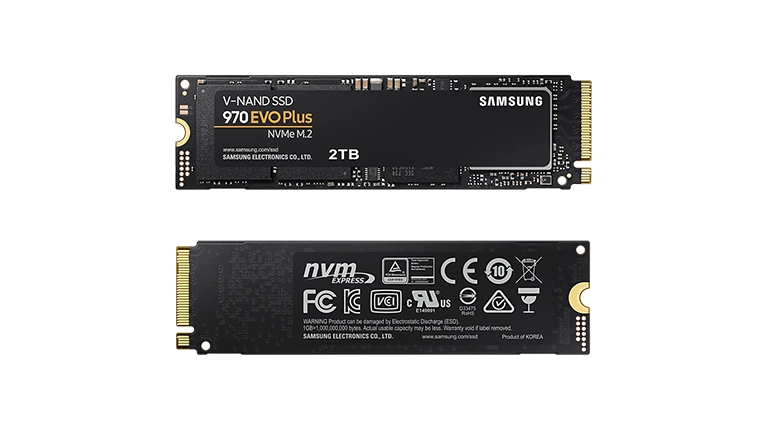

Samsung 970 EVO Plus NVMe M.2 SSD
Tech Specs
| General | Brand: Samsung Model: 970 EVO Plus 250GB / 500GB / 1TB / 2TB Type: Internal SSD |
| General Feature | Application Client PCsCapacity 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)Form Factor M.2 (2280)Interface PCIe Gen 3.0 x4, NVMe 1.3Dimension (WxHxD) 80.15 x 22.15 x 2.38 (mm)Weight Max 8.0 g Storage Memory Controller Cache Memory |
| Special Feature | TRIM Support SupportedS.M.A.R.T Support SupportedGC (Garbage Collection) Auto Garbage Collection AlgorithmEncryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)WWN Support Not supportedDevice Sleep Mode Support Yes |
| Performance | Sequential Read Up to 3,500 MB/s * Performance may vary based on system hardware & configurationSequential Write Up to 3,300 MB/s * Performance may vary based on system hardware & configurationRandom Read (4KB, QD32) Up to 620,000 IOPS * Performance may vary based on system hardware & configurationRandom Write (4KB, QD32) Up to 560,000 IOPS * Performance may vary based on system hardware & configurationRandom Read (4KB, QD1) Up to 19,000 IOPS * Performance may vary based on system hardware & configurationRandom Write (4KB, QD1) Up to 62,000 IOPS * Performance may vary based on system hardware & configuration |
| Environment | Average Power Consumption (system level) *Average: 6 W*Maximum: 9 W (Burst mode)* Actual power consumption may vary depending on system hardware & configurationPower consumption (Idle) Max. 30 mW * Actual power consumption may vary depending on system hardware & configurationAllowable Voltage 3.3 V ± 5 % Allowable voltageReliability (MTBF) 1.5 Million Hours Reliability (MTBF)Operating Temperature 0 – 70 ℃ Operating TemperatureShock 1,500 G & 0.5 ms (Half sine) |
| Software | Management SW Magician Software for SSD management |
Samsung 970 EVO Plus
- NVMe M.2 SSD
- Always Evolving SSD
- Level up Performance
- Design Flexibility
| Capacity | 250GB, 500GB, 1TB, 2TB |
|---|
